mptcpd private plugin interface. More...

#include <stdbool.h>
#include <mptcpd/export.h>
#include <mptcpd/types.h>
#include <ell/queue.h>

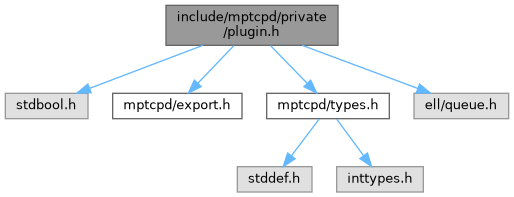

Include dependency graph for plugin.h:

This graph shows which files directly or indirectly include this file:

Functions
MPTCP Path Manager Generic Netlink Event Handlers
MPTCPD_API bool	mptcpd_plugin_load (char const dir, char const default_name, struct l_queue const plugins_to_load, struct mptcpd_pm pm)
	Load mptcpd plugins.

MPTCPD_API void	mptcpd_plugin_unload (struct mptcpd_pm *pm)
	Unload mptcpd plugins.

MPTCPD_API void	mptcpd_plugin_new_connection (char const name, mptcpd_token_t token, struct sockaddr const laddr, struct sockaddr const raddr, bool server_side, struct mptcpd_pm pm)
	Notify plugin of new MPTCP connection pending completion.

MPTCPD_API void	mptcpd_plugin_connection_established (mptcpd_token_t token, struct sockaddr const laddr, struct sockaddr const raddr, bool server_side, struct mptcpd_pm *pm)
	Notify plugin of MPTCP connection completion.

MPTCPD_API void	mptcpd_plugin_connection_closed (mptcpd_token_t token, struct mptcpd_pm *pm)
	Notify plugin of MPTCP connection closure.

MPTCPD_API void	mptcpd_plugin_new_address (mptcpd_token_t token, mptcpd_aid_t id, struct sockaddr const addr, struct mptcpd_pm pm)
	Notify plugin of new address advertised by a peer.

MPTCPD_API void	mptcpd_plugin_address_removed (mptcpd_token_t token, mptcpd_aid_t id, struct mptcpd_pm *pm)
	Notify plugin of address no longer advertised by a peer.

MPTCPD_API void	mptcpd_plugin_new_subflow (mptcpd_token_t token, struct sockaddr const laddr, struct sockaddr const raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin that a peer has joined the MPTCP connection.

MPTCPD_API void	mptcpd_plugin_subflow_closed (mptcpd_token_t token, struct sockaddr const laddr, struct sockaddr const raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin of MPTCP subflow closure.

MPTCPD_API void	mptcpd_plugin_subflow_priority (mptcpd_token_t token, struct sockaddr const laddr, struct sockaddr const raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin of MPTCP subflow priority change.

MPTCPD_API void	mptcpd_plugin_listener_created (char const name, struct sockaddr const laddr, struct mptcpd_pm *pm)
	Notify plugin of MPTCP listener creation.

MPTCPD_API void	mptcpd_plugin_listener_closed (char const name, struct sockaddr const laddr, struct mptcpd_pm *pm)
	Notify plugin of MPTCP listener closure.

Network Monitor Event Handlers
A set of operations that dispatch mptcpd network monitor events to all registered plugins. See also mptcpd_nm_ops
MPTCPD_API void	mptcpd_plugin_new_interface (struct mptcpd_interface const i, void pm)
	Notify plugin of new network interface.

MPTCPD_API void	mptcpd_plugin_update_interface (struct mptcpd_interface const i, void pm)
	Notify plugin of updated network interface.

MPTCPD_API void	mptcpd_plugin_delete_interface (struct mptcpd_interface const i, void pm)
	Notify plugin of removed network interface.

MPTCPD_API void	mptcpd_plugin_new_local_address (struct mptcpd_interface const i, struct sockaddr const sa, void *pm)
	Notify plugin of new network address.

MPTCPD_API void	mptcpd_plugin_delete_local_address (struct mptcpd_interface const i, struct sockaddr const sa, void *pm)
	Notify plugin of removed network address.

Detailed Description

mptcpd private plugin interface.

Function Documentation

◆ mptcpd_plugin_address_removed()

MPTCPD_API void mptcpd_plugin_address_removed	(	mptcpd_token_t	token,
		mptcpd_aid_t	id,
		struct mptcpd_pm *	pm
	)

Notify plugin of address no longer advertised by a peer.

Parameters

[in]	token	MPTCP connection token.
[in]	id	Remote address identifier.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_connection_closed()

MPTCPD_API void mptcpd_plugin_connection_closed	(	mptcpd_token_t	token,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP connection closure.

Parameters

[in]	token	MPTCP connection token.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_connection_established()

MPTCPD_API void mptcpd_plugin_connection_established	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	server_side,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP connection completion.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	server_side	Server side connection flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_delete_interface()

MPTCPD_API void mptcpd_plugin_delete_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of removed network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_delete_local_address()

MPTCPD_API void mptcpd_plugin_delete_local_address	(	struct mptcpd_interface const *	i,
		struct sockaddr const *	sa,
		void *	pm
	)

Notify plugin of removed network address.

Parameters

[in]	i	Network interface information.
[in]	sa	Network address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_listener_closed()

MPTCPD_API void mptcpd_plugin_listener_closed	(	char const *	name,
		struct sockaddr const *	laddr,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP listener closure.

Parameters

[in]	laddr	Local address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_listener_created()

MPTCPD_API void mptcpd_plugin_listener_created	(	char const *	name,
		struct sockaddr const *	laddr,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP listener creation.

Parameters

[in]	laddr	Local address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_load()

MPTCPD_API bool mptcpd_plugin_load	(	char const *	dir,
		char const *	default_name,
		struct l_queue const *	plugins_to_load,
		struct mptcpd_pm *	pm
	)

Load mptcpd plugins.

Parameters

[in]	dir	Directory from which plugins will be loaded.
[in]	default_name	Name of plugin to be considered the default.
[in]	plugins_to_load	List of plugins to be loaded.
[in]	pm	Opaque pointer to mptcpd path manager object.

Returns: true on successful load, false otherwise.

Create map of connection token to path manager plugin.

Note: We use the default ELL direct hash function that converts from a pointer to an unsigned int.

Todo:: Determine if this is a performance bottleneck on 64 bit platforms since it is possible that connection IDs may end up in the same hash bucket due to the truncation from 64 bits to 32 bits in ELL's direct hash function, assuming unsigned int is a 32 bit type.

◆ mptcpd_plugin_new_address()

MPTCPD_API void mptcpd_plugin_new_address	(	mptcpd_token_t	token,
		mptcpd_aid_t	id,
		struct sockaddr const *	addr,
		struct mptcpd_pm *	pm
	)

Notify plugin of new address advertised by a peer.

Parameters

[in]	token	MPTCP connection token.
[in]	id	Remote address identifier.
[in]	addr	Remote address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_new_connection()

MPTCPD_API void mptcpd_plugin_new_connection	(	char const *	name,
		mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	server_side,
		struct mptcpd_pm *	pm
	)

Notify plugin of new MPTCP connection pending completion.

Parameters

[in]	name	Plugin name.
[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	server_side	Server side connection flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_new_interface()

MPTCPD_API void mptcpd_plugin_new_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of new network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_new_local_address()

MPTCPD_API void mptcpd_plugin_new_local_address	(	struct mptcpd_interface const *	i,
		struct sockaddr const *	sa,
		void *	pm
	)

Notify plugin of new network address.

Parameters

[in]	i	Network interface information.
[in]	sa	Network address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_new_subflow()

MPTCPD_API void mptcpd_plugin_new_subflow	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin that a peer has joined the MPTCP connection.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_subflow_closed()

MPTCPD_API void mptcpd_plugin_subflow_closed	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP subflow closure.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_subflow_priority()

MPTCPD_API void mptcpd_plugin_subflow_priority	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP subflow priority change.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

◆ mptcpd_plugin_unload()

MPTCPD_API void mptcpd_plugin_unload ( struct mptcpd_pm * pm )

Unload mptcpd plugins.

Parameters

[in] pm Opaque pointer to mptcpd path manager object.

Note: This isn't thread-safe. We'll need a lock if we ever support destroying multiple path managers from different threads. However, right now there doesn't appear to be a need to support that.

◆ mptcpd_plugin_update_interface()

MPTCPD_API void mptcpd_plugin_update_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of updated network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.
