plugin.c File Reference

Common path manager plugin functions. More...

#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <dirent.h>
#include <dlfcn.h>
#include <errno.h>
#include <unistd.h>
#include <assert.h>
#include <ell/ell.h>
#include <linux/genetlink.h>
#include <mptcpd/private/plugin.h>
#include <mptcpd/plugin.h>

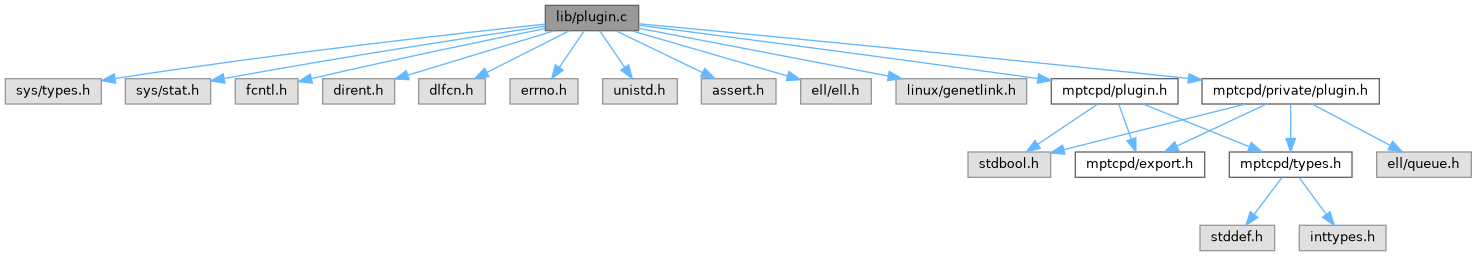

Include dependency graph for plugin.c:

Classes
struct	plugin_info
	Plugin information. More...
struct	plugin_address_info
	Convenience structure to bundle address information. More...
struct	plugin_interface_info
	Convenience structure to bundle interface information. More...

Macros
#define	MPTCP_PM_NAME_LEN   GENL_NAMSIZ

Functions
bool	mptcpd_plugin_load (char const *dir, char const *default_name, struct l_queue const *plugins_to_load, struct mptcpd_pm *pm)
	Load mptcpd plugins.
void	mptcpd_plugin_unload (struct mptcpd_pm *pm)
	Unload mptcpd plugins.
bool	mptcpd_plugin_register_ops (char const *name, struct mptcpd_plugin_ops const *ops)
	Register path manager operations.
void	mptcpd_plugin_new_connection (char const *name, mptcpd_token_t token, struct sockaddr const *laddr, struct sockaddr const *raddr, bool server_side, struct mptcpd_pm *pm)
	Notify plugin of new MPTCP connection pending completion.
void	mptcpd_plugin_connection_established (mptcpd_token_t token, struct sockaddr const *laddr, struct sockaddr const *raddr, bool server_side, struct mptcpd_pm *pm)
	Notify plugin of MPTCP connection completion.
void	mptcpd_plugin_connection_closed (mptcpd_token_t token, struct mptcpd_pm *pm)
	Notify plugin of MPTCP connection closure.
void	mptcpd_plugin_new_address (mptcpd_token_t token, mptcpd_aid_t id, struct sockaddr const *addr, struct mptcpd_pm *pm)
	Notify plugin of new address advertised by a peer.
void	mptcpd_plugin_address_removed (mptcpd_token_t token, mptcpd_aid_t id, struct mptcpd_pm *pm)
	Notify plugin of address no longer advertised by a peer.
void	mptcpd_plugin_new_subflow (mptcpd_token_t token, struct sockaddr const *laddr, struct sockaddr const *raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin that a peer has joined the MPTCP connection.
void	mptcpd_plugin_subflow_closed (mptcpd_token_t token, struct sockaddr const *laddr, struct sockaddr const *raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin of MPTCP subflow closure.
void	mptcpd_plugin_subflow_priority (mptcpd_token_t token, struct sockaddr const *laddr, struct sockaddr const *raddr, bool backup, struct mptcpd_pm *pm)
	Notify plugin of MPTCP subflow priority change.
void	mptcpd_plugin_listener_created (char const *name, struct sockaddr const *laddr, struct mptcpd_pm *pm)
	Notify plugin of MPTCP listener creation.
void	mptcpd_plugin_listener_closed (char const *name, struct sockaddr const *laddr, struct mptcpd_pm *pm)
	Notify plugin of MPTCP listener closure.
void	mptcpd_plugin_new_interface (struct mptcpd_interface const *i, void *pm)
	Notify plugin of new network interface.
void	mptcpd_plugin_update_interface (struct mptcpd_interface const *i, void *pm)
	Notify plugin of updated network interface.
void	mptcpd_plugin_delete_interface (struct mptcpd_interface const *i, void *pm)
	Notify plugin of removed network interface.
void	mptcpd_plugin_new_local_address (struct mptcpd_interface const *i, struct sockaddr const *sa, void *pm)
	Notify plugin of new network address.
void	mptcpd_plugin_delete_local_address (struct mptcpd_interface const *i, struct sockaddr const *sa, void *pm)
	Notify plugin of removed network address.

Detailed Description

Common path manager plugin functions.

Copyright (c) 2018-2022, Intel Corporation

Macro Definition Documentation

MPTCP_PM_NAME_LEN

#define MPTCP_PM_NAME_LEN   GENL_NAMSIZ

Todo:

Remove this preprocessor symbol definition once support for path management strategy names are supported in the new generic netlink API.

Note

GENL_NAMSIZ is used as the size since the path manager name attribute in the deprecated MPTCP generic netlink API contained a fixed length string of that size.

Function Documentation

mptcpd_plugin_address_removed()

void mptcpd_plugin_address_removed	(	mptcpd_token_t	token,
		mptcpd_aid_t	id,
		struct mptcpd_pm *	pm
	)

Notify plugin of address no longer advertised by a peer.

Parameters

[in]	token	MPTCP connection token.
[in]	id	Remote address identifier.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_connection_closed()

void mptcpd_plugin_connection_closed	(	mptcpd_token_t	token,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP connection closure.

Parameters

[in]	token	MPTCP connection token.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_connection_established()

void mptcpd_plugin_connection_established	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	server_side,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP connection completion.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	server_side	Server side connection flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_delete_interface()

void mptcpd_plugin_delete_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of removed network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_delete_local_address()

void mptcpd_plugin_delete_local_address	(	struct mptcpd_interface const *	i,
		struct sockaddr const *	sa,
		void *	pm
	)

Notify plugin of removed network address.

Parameters

[in]	i	Network interface information.
[in]	sa	Network address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_listener_closed()

void mptcpd_plugin_listener_closed	(	char const *	name,
		struct sockaddr const *	laddr,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP listener closure.

Parameters

[in]	laddr	Local address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_listener_created()

void mptcpd_plugin_listener_created	(	char const *	name,
		struct sockaddr const *	laddr,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP listener creation.

Parameters

[in]	laddr	Local address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_load()

bool mptcpd_plugin_load	(	char const *	dir,
		char const *	default_name,
		struct l_queue const *	plugins_to_load,
		struct mptcpd_pm *	pm
	)

Load mptcpd plugins.

Parameters

[in]	dir	Directory from which plugins will be loaded.
[in]	default_name	Name of plugin to be considered the default.
[in]	plugins_to_load	List of plugins to be loaded.
[in]	pm	Opaque pointer to mptcpd path manager object.

Returns

true on successful load, false otherwise.

Create map of connection token to path manager plugin.

Note

We use the default ELL direct hash function that converts from a pointer to an unsigned int.

Todo:

Determine if this is a performance bottleneck on 64 bit platforms since it is possible that connection IDs may end up in the same hash bucket due to the truncation from 64 bits to 32 bits in ELL's direct hash function, assuming unsigned int is a 32 bit type.

mptcpd_plugin_new_address()

void mptcpd_plugin_new_address	(	mptcpd_token_t	token,
		mptcpd_aid_t	id,
		struct sockaddr const *	addr,
		struct mptcpd_pm *	pm
	)

Notify plugin of new address advertised by a peer.

Parameters

[in]	token	MPTCP connection token.
[in]	id	Remote address identifier.
[in]	addr	Remote address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_new_connection()

void mptcpd_plugin_new_connection	(	char const *	name,
		mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	server_side,
		struct mptcpd_pm *	pm
	)

Notify plugin of new MPTCP connection pending completion.

Parameters

[in]	name	Plugin name.
[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	server_side	Server side connection flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_new_interface()

void mptcpd_plugin_new_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of new network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_new_local_address()

void mptcpd_plugin_new_local_address	(	struct mptcpd_interface const *	i,
		struct sockaddr const *	sa,
		void *	pm
	)

Notify plugin of new network address.

Parameters

[in]	i	Network interface information.
[in]	sa	Network address information.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_new_subflow()

void mptcpd_plugin_new_subflow	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin that a peer has joined the MPTCP connection.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_register_ops()

bool mptcpd_plugin_register_ops	(	char const *	name,
		struct mptcpd_plugin_ops const *	ops
	)

Register path manager operations.

Path manager plugins should call this function in their init function to register their MPTCP path manager event handling functions.

Parameters

[in]	name	Plugin name.
[in]	ops	Set of MPTCP path manager event handling functions provided by the path manager plugin.

Return values

true	Registration succeeded.
false	Registration failed. Failure should only occur if plugins were not loaded prior to calling this function. Plugin developers should generally not have to worry about that since the load is guaranteed to have occurred prior to their init function being called.

Todo:

Should we return false if all of the callbacks in ops are NULL?

mptcpd_plugin_subflow_closed()

void mptcpd_plugin_subflow_closed	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP subflow closure.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_subflow_priority()

void mptcpd_plugin_subflow_priority	(	mptcpd_token_t	token,
		struct sockaddr const *	laddr,
		struct sockaddr const *	raddr,
		bool	backup,
		struct mptcpd_pm *	pm
	)

Notify plugin of MPTCP subflow priority change.

Parameters

[in]	token	MPTCP connection token.
[in]	laddr	Local address information.
[in]	raddr	Remote address information.
[in]	backup	Backup priority flag.
[in]	pm	Opaque pointer to mptcpd path manager object.

mptcpd_plugin_unload()

void mptcpd_plugin_unload

(

struct mptcpd_pm *

pm

)

Unload mptcpd plugins.

Parameters

[in]

pm

Opaque pointer to mptcpd path manager object.

Note

This isn't thread-safe. We'll need a lock if we ever support destroying multiple path managers from different threads. However, right now there doesn't appear to be a need to support that.

mptcpd_plugin_update_interface()

void mptcpd_plugin_update_interface	(	struct mptcpd_interface const *	i,
		void *	pm
	)

Notify plugin of updated network interface.

Parameters

[in]	i	Network interface information.
[in]	pm	Opaque pointer to mptcpd path manager object.
