network_monitor.h File Reference

mptcpd network device monitoring. More...

#include <mptcpd/export.h>
#include <stdbool.h>
#include <net/if.h>

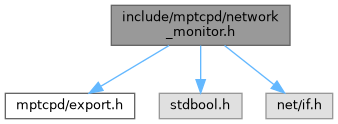

Include dependency graph for network_monitor.h:

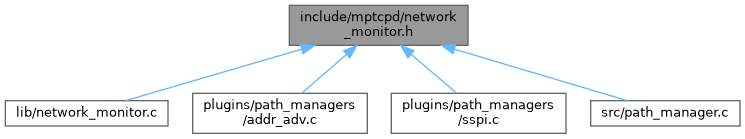

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mptcpd_interface
	Network interface-specific information. More...
struct	mptcpd_nm_ops
	Network monitor event tracking operations. More...

Typedefs
typedef void(*	mptcpd_nm_callback) (struct mptcpd_interface const *interface, void *callback_data)
	Network monitor iteration function type.

Functions
MPTCPD_API void	mptcpd_nm_foreach_interface (struct mptcpd_nm const *nm, mptcpd_nm_callback callback, void *data)
	Iterate over all monitored network interfaces.
MPTCPD_API bool	mptcpd_nm_register_ops (struct mptcpd_nm *nm, struct mptcpd_nm_ops const *ops, void *user_data)
	Subscribe to mptcpd network monitor events.
MPTCPD_API bool	mptcpd_nm_monitor_loopback (struct mptcpd_nm *nm, bool enable)
	Enable monitoring of the loopback network interface.

Detailed Description

mptcpd network device monitoring.

Copyright (c) 2017-2022, Intel Corporation

Typedef Documentation

mptcpd_nm_callback

typedef void(* mptcpd_nm_callback) (struct mptcpd_interface const *interface, void *callback_data)

Network monitor iteration function type.

The mptcpd network monitor will call a function of this type when iterating over the network interfaces via mptcpd_nm_foreach_interface().

Parameters

[in]	interface	Network interface information.
[in,out]	callback_data	Data provided by the caller of mptcpd_nm_foreach_interface().

Function Documentation

mptcpd_nm_foreach_interface()

MPTCPD_API void mptcpd_nm_foreach_interface	(	struct mptcpd_nm const *	nm,
		mptcpd_nm_callback	callback,
		void *	data
	)

Iterate over all monitored network interfaces.

Parameters

[in]	nm	Pointer to the mptcpd network monitor object.
[in]	callback	Function to be called during each network interface iteration.
[in]	data	Data to pass to the callback function during each iteration.

mptcpd_nm_monitor_loopback()

MPTCPD_API bool mptcpd_nm_monitor_loopback	(	struct mptcpd_nm *	nm,
		bool	enable
	)

Enable monitoring of the loopback network interface.

Mptcpd normally only monitors non-loopback network interfaces. Call this function to enable monitoring of loopback network interfaces.

Note

Mptcpd monitoring of loopback network interfaces is meant primarily for testing purposes.

Parameters

[in,out]	nm	Pointer to the mptcpd network monitor object.
[in]	enable	Enable or disable monitoring of loopback network interfaces.

Return values

true	Successfully enable or disabled.
false	Invalid nm argument.

mptcpd_nm_register_ops()

MPTCPD_API bool mptcpd_nm_register_ops	(	struct mptcpd_nm *	nm,
		struct mptcpd_nm_ops const *	ops,
		void *	user_data
	)

Subscribe to mptcpd network monitor events.

Register a set of operations that will be called on a corresponding mptcpd network monitoring event, e.g. network interface or address addition, update, or removal.

Parameters

[in,out]	nm	Pointer to the mptcpd network monitor object.
[in]	ops	Set of network monitoring event handling functions.
[in]	user_data	Data to be passed to the network event tracking operations.

Return values

true	Registration succeeded.
false	Registration failed.
