listener_manager.c File Reference

Map of MPTCP local address ID to listener. More...

#include <assert.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <unistd.h>
#include <errno.h>
#include <string.h>
#include <ell/ell.h>
#include <mptcpd/private/murmur_hash.h>
#include <mptcpd/private/listener_manager.h>
#include <mptcpd/listener_manager.h>
#include "hash_sockaddr.h"

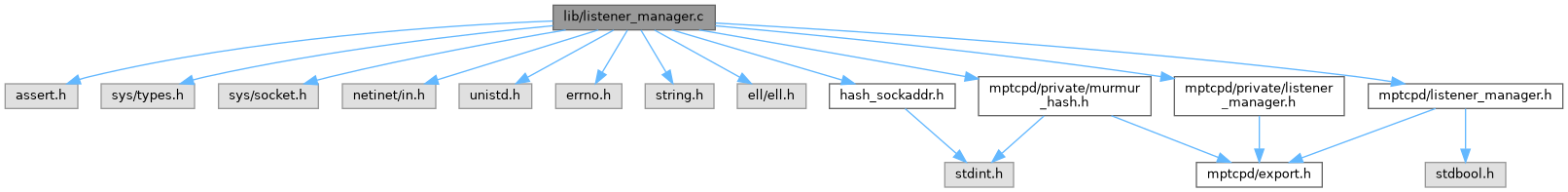

Include dependency graph for listener_manager.c:

Classes
struct	mptcpd_lm
	Internal mptcpd listern manager data. More...
struct	lm_value
	mptcpd listener map entry value. More...
struct	key_in
	Bundle IPv4 address and port as a hash key. More...
struct	key_in6
	Bundle IPv6 address and port as a hash key. More...

Macros
#define	IPPROTO_MPTCP   IPPROTO_TCP + 256

Functions
struct mptcpd_lm *	mptcpd_lm_create (void)
	Create a MPTCP listener manager.
void	mptcpd_lm_destroy (struct mptcpd_lm *lm)
	Destroy MPTCP listener manager.
int	mptcpd_lm_listen (struct mptcpd_lm *lm, struct sockaddr *sa)
	Listen on the given MPTCP local address.
int	mptcpd_lm_close (struct mptcpd_lm *lm, struct sockaddr const *sa)
	Stop listening on a MPTCP local address.

Detailed Description

Map of MPTCP local address ID to listener.

Copyright (c) 2022, Intel Corporation

Function Documentation

mptcpd_lm_close()

int mptcpd_lm_close	(	struct mptcpd_lm *	lm,
		struct sockaddr const *	sa
	)

Stop listening on a MPTCP local address.

Parameters

[in]	lm	The mptcpd address listener manager object.
[in]	sa	The MPTCP local address with a non-zero port, such as the one assigned by mptcpd_lm_listen(), i.e. the non-zero port provided by the user or the ephemeral port chosen by the kernel.

Returns

0 if operation was successful. -1 or errno otherwise.

mptcpd_lm_create()

struct mptcpd_lm * mptcpd_lm_create

(

void

)

Create a MPTCP listener manager.

Returns

Pointer to a MPTCP listener manager on success. NULL on failure.

mptcpd_lm_destroy()

void mptcpd_lm_destroy

(

struct mptcpd_lm *

lm

)

Destroy MPTCP listener manager.

Parameters

[in,out]

lm

The mptcpd address listener manager object.

mptcpd_lm_listen()

int mptcpd_lm_listen	(	struct mptcpd_lm *	lm,
		struct sockaddr *	sa
	)

Listen on the given MPTCP local address.

Create a MPTCP listening socket for the given local address. This is needed to accept subflows, e.g. during a MP_JOIN operation.

Parameters

[in]	lm	The mptcpd address listener manager object.
[in,out]	sa	The MPTCP local address. If the port is zero an ephemeral port will be chosen, and assigned to the appropriate underlying address family-specific port member, e.g. sin_port or sin6_port. The port will be in network byte order.

Returns

0 if operation was successful. -1 or errno otherwise.
