mptcpd generic netlink commands. More...

#include <assert.h>
#include <errno.h>
#include <netinet/in.h>
#include <ell/ell.h>
#include <mptcpd/path_manager.h>
#include <mptcpd/private/path_manager.h>
#include <mptcpd/plugin.h>
#include <mptcpd/private/netlink_pm.h>

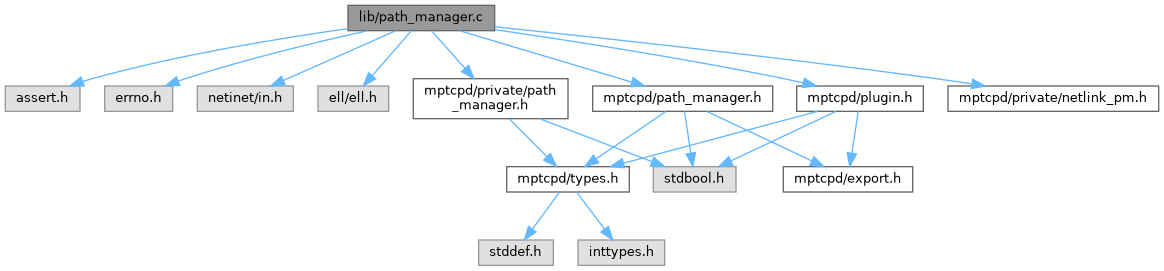

Include dependency graph for path_manager.c:

Functions
bool	mptcpd_pm_register_ops (struct mptcpd_pm pm, struct mptcpd_pm_ops const ops, void *user_data)
	Subscribe to mptcpd path manager events.

bool	mptcpd_pm_ready (struct mptcpd_pm const *pm)
	Is mptcpd path manager ready for use?

int	mptcpd_kpm_add_addr (struct mptcpd_pm pm, struct sockaddr const addr, mptcpd_aid_t address_id, mptcpd_flags_t flags, int index)
	Advertise new network address to peers.

int	mptcpd_kpm_remove_addr (struct mptcpd_pm *pm, mptcpd_aid_t address_id)
	Stop advertising network address to peers.

int	mptcpd_kpm_get_addr (struct mptcpd_pm pm, mptcpd_aid_t id, mptcpd_kpm_get_addr_cb_t callback, void data, mptcpd_complete_func_t complete)
	Get network address corresponding to an address ID.

int	mptcpd_kpm_dump_addrs (struct mptcpd_pm pm, mptcpd_kpm_get_addr_cb_t callback, void data, mptcpd_complete_func_t complete)
	Get list (array) of MPTCP network addresses.

int	mptcpd_kpm_flush_addrs (struct mptcpd_pm *pm)
	Flush MPTCP addresses.

int	mptcpd_kpm_set_limits (struct mptcpd_pm pm, struct mptcpd_limit const limits, size_t len)
	Set MPTCP resource limits.

int	mptcpd_kpm_get_limits (struct mptcpd_pm pm, mptcpd_pm_get_limits_cb callback, void data)
	Get MPTCP resource limits.

int	mptcpd_kpm_set_flags (struct mptcpd_pm pm, struct sockaddr const addr, mptcpd_flags_t flags)
	Set MPTCP flags for a local IP address.

int	mptcpd_pm_add_addr (struct mptcpd_pm pm, struct sockaddr addr, mptcpd_aid_t address_id, mptcpd_token_t token)
	Advertise new network address to peers.

int	mptcpd_pm_add_addr_no_listener (struct mptcpd_pm pm, struct sockaddr addr, mptcpd_aid_t address_id, mptcpd_token_t token)
	Advertise new network address to peers without creating a listener.

int	mptcpd_pm_remove_addr (struct mptcpd_pm pm, struct sockaddr const addr, mptcpd_aid_t address_id, mptcpd_token_t token)
	Stop advertising network address to peers.

int	mptcpd_pm_add_subflow (struct mptcpd_pm pm, mptcpd_token_t token, mptcpd_aid_t local_address_id, mptcpd_aid_t remote_address_id, struct sockaddr const local_addr, struct sockaddr const *remote_addr, bool backup)
	Create a new subflow.

int	mptcpd_pm_set_backup (struct mptcpd_pm pm, mptcpd_token_t token, struct sockaddr const local_addr, struct sockaddr const *remote_addr, bool backup)
	Set priority of a subflow.

int	mptcpd_pm_remove_subflow (struct mptcpd_pm pm, mptcpd_token_t token, struct sockaddr const local_addr, struct sockaddr const *remote_addr)
	Remove a subflow.

struct mptcpd_nm const *	mptcpd_pm_get_nm (struct mptcpd_pm const *pm)
	Get pointer to the underlying network monitor.

struct mptcpd_idm *	mptcpd_pm_get_idm (struct mptcpd_pm const *pm)
	Get pointer to the global MPTCP address ID manager.

struct mptcpd_lm *	mptcpd_pm_get_lm (struct mptcpd_pm const *pm)
	Get pointer to the global MPTCP listener manager.

Detailed Description

mptcpd generic netlink commands.

Function Documentation

◆ mptcpd_kpm_add_addr()

int mptcpd_kpm_add_addr	(	struct mptcpd_pm *	pm,
		struct sockaddr const *	addr,
		mptcpd_aid_t	id,
		mptcpd_flags_t	flags,
		int	index
	)

Advertise new network address to peers.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	addr	Local IP address and port to be advertised through the MPTCP protocol `ADD_ADDR` option. The port is optional, and is ignored if it is zero. A non-zero port implies `MPTCPD_ADDR_FLAG_SIGNAL` in flags.
[in]	id	MPTCP local address ID.
[in]	flags	Bitset of MPTCP flags associated with the network address, e.g. `MPTCPD_ADDR_FLAG_SUBFLOW` \| `MPTCPD_ADDR_FLAG_BACKUP`. Optional for upstream kernel (e.g. set to zero).
[in]	index	Network interface index. Optional for upstream Linux kernel (e.g. set to zero).

Returns: 0 if operation was successful. errno otherwise.

◆ mptcpd_kpm_dump_addrs()

int mptcpd_kpm_dump_addrs	(	struct mptcpd_pm *	pm,
		mptcpd_kpm_get_addr_cb_t	callback,
		void *	data,
		mptcpd_complete_func_t	complete
	)

Get list (array) of MPTCP network addresses.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	callback	Function to be called when a network address has been retrieved. This function will be called when each address dump is available, or possibly not at all.
[in]	data	Data to be passed to the callback function.
[in]	complete	Function called when the asynchronous `dump_addrs` call completes.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_flush_addrs()

int mptcpd_kpm_flush_addrs ( struct mptcpd_pm * pm )

Flush MPTCP addresses.

Purge all MPTCP addresses.

Parameters

[in] pm The mptcpd path manager object.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_get_addr()

int mptcpd_kpm_get_addr	(	struct mptcpd_pm *	pm,
		mptcpd_aid_t	id,
		mptcpd_kpm_get_addr_cb_t	callback,
		void *	data,
		mptcpd_complete_func_t	complete
	)

Get network address corresponding to an address ID.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	id	MPTCP local address ID.
[in]	callback	Function to be called when the network address corresponding to the given MPTCP address id has been retrieved.
[in]	data	Data to be passed to the callback function.
[in]	complete	Function called when the asynchronous `get_addr` call completes.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_get_limits()

int mptcpd_kpm_get_limits	(	struct mptcpd_pm *	pm,
		mptcpd_pm_get_limits_cb	callback,
		void *	data
	)

Get MPTCP resource limits.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	callback	Function to be called when the MPTCP resource limits have been retrieved.
[in]	data	Data to be passed to the callback function.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_remove_addr()

int mptcpd_kpm_remove_addr	(	struct mptcpd_pm *	pm,
		mptcpd_aid_t	address_id
	)

Stop advertising network address to peers.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	address_id	MPTCP local address ID to be sent in the MPTCP protocol `REMOVE_ADDR` option corresponding to the local address that will no longer be available.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_set_flags()

int mptcpd_kpm_set_flags	(	struct mptcpd_pm *	pm,
		struct sockaddr const *	addr,
		mptcpd_flags_t	flags
	)

Set MPTCP flags for a local IP address.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	addr	Local IP address. A non-zero port implies `MPTCPD_ADDR_FLAG_SIGNAL` in flags.
[in]	flags	Flags to be associated with addr.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_kpm_set_limits()

int mptcpd_kpm_set_limits	(	struct mptcpd_pm *	pm,
		struct mptcpd_limit const *	limits,
		size_t	len
	)

Set MPTCP resource limits.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	limits	Array of MPTCP resource type/limit pairs.
[in]	len	Length of the limits array.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_pm_add_addr()

int mptcpd_pm_add_addr	(	struct mptcpd_pm *	pm,
		struct sockaddr *	addr,
		mptcpd_aid_t	id,
		mptcpd_token_t	token
	)

Advertise new network address to peers.

Parameters

[in]	pm	The mptcpd path manager object.
[in,out]	addr	Local IP address and port to be advertised through the MPTCP protocol `ADD_ADDR` option. If the port is zero an ephemeral port will be chosen, and assigned to the appropriate underlying address family-specific port member, e.g. `sin_port` or `sin6_port`. The port will be in network byte order.
[in]	id	MPTCP local address ID.
[in]	token	MPTCP connection token.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_pm_add_addr_no_listener()

int mptcpd_pm_add_addr_no_listener	(	struct mptcpd_pm *	pm,
		struct sockaddr *	addr,
		mptcpd_aid_t	id,
		mptcpd_token_t	token
	)

Advertise new network address to peers without creating a listener.

Parameters

[in]	pm	The mptcpd path manager object.
[in,out]	addr	Local IP address and port to be advertised through the MPTCP protocol `ADD_ADDR` option. If the port is zero no port will be specified on the underlying protocol level.
[in]	id	MPTCP local address ID.
[in]	token	MPTCP connection token.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_pm_add_subflow()

int mptcpd_pm_add_subflow	(	struct mptcpd_pm *	pm,
		mptcpd_token_t	token,
		mptcpd_aid_t	local_address_id,
		mptcpd_aid_t	remote_address_id,
		struct sockaddr const *	local_addr,
		struct sockaddr const *	remote_addr,
		bool	backup
	)

Create a new subflow.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	token	MPTCP connection token.
[in]	local_address_id	MPTCP local address ID.
[in]	remote_address_id	MPTCP remote address ID.
[in]	local_addr	MPTCP subflow local address information, including the port. This argument is optional and may be `NULL`.
[in]	remote_addr	MPTCP subflow remote address information, including the port.
[in]	backup	Whether or not to set the MPTCP subflow backup priority flag.

Returns: 0 if operation was successful. -1 or errno otherwise.

Todo:: There far too many parameters. Reduce.

◆ mptcpd_pm_get_idm()

struct mptcpd_idm * mptcpd_pm_get_idm ( struct mptcpd_pm const * pm )

Get pointer to the global MPTCP address ID manager.

Parameters

[in] pm Mptcpd path manager data.

Note: The global MPTCP address ID manager is meant to track address IDs associated with the in-kernel path manager.

Returns: Global mptcpd MPTCP address ID manager.

◆ mptcpd_pm_get_lm()

struct mptcpd_lm * mptcpd_pm_get_lm ( struct mptcpd_pm const * pm )

Get pointer to the global MPTCP listener manager.

Parameters

[in] pm Mptcpd path manager data.

Note: The global MPTCP listener manager tracks MPTCP listening sockets associated with a local address.

Returns: Global mptcpd MPTCP listener manager.

◆ mptcpd_pm_get_nm()

struct mptcpd_nm const * mptcpd_pm_get_nm ( struct mptcpd_pm const * pm )

Get pointer to the underlying network monitor.

Parameters

[in] pm Mptcpd path manager.

Returns: Mptcpd network monitor.

◆ mptcpd_pm_ready()

bool mptcpd_pm_ready ( struct mptcpd_pm const * pm )

Is mptcpd path manager ready for use?

The mptcpd path manager is ready for use when the "mptcp" generic netlink family is available in the Linux kernel. No path management related interaction with the kernel can occur until that family appears.

Parameters

[in] pm Mptcpd path manager.

Returns: true if the mptcpd path manager is ready for use, and false otherwise.

◆ mptcpd_pm_register_ops()

bool mptcpd_pm_register_ops	(	struct mptcpd_pm *	pm,
		struct mptcpd_pm_ops const *	ops,
		void *	user_data
	)

Subscribe to mptcpd path manager events.

Register a set of operations that will be called on a corresponding mptcpd path manager event, e.g. path manager readiness.

Parameters

[in,out]	pm	Pointer to the mptcpd path manager object.
[in]	ops	Set of path manager event handling functions.
[in]	user_data	Data to be passed to the path manager event tracking operations.

Return values

true	Registration succeeded.
false	Registration failed.

◆ mptcpd_pm_remove_addr()

int mptcpd_pm_remove_addr	(	struct mptcpd_pm *	pm,
		struct sockaddr const *	addr,
		mptcpd_aid_t	address_id,
		mptcpd_token_t	token
	)

Stop advertising network address to peers.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	addr	Local IP address and port that should no longer be advertised through MPTCP.
[in]	address_id	MPTCP local address ID to be sent in the MPTCP protocol `REMOVE_ADDR` option corresponding to the local address that will no longer be available.
[in]	token	MPTCP connection token.

Returns: 0 if operation was successful. -1 or errno otherwise.

◆ mptcpd_pm_remove_subflow()

int mptcpd_pm_remove_subflow	(	struct mptcpd_pm *	pm,
		mptcpd_token_t	token,
		struct sockaddr const *	local_addr,
		struct sockaddr const *	remote_addr
	)

Remove a subflow.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	token	MPTCP connection token.
[in]	local_addr	MPTCP subflow local address information, including the port.
[in]	remote_addr	MPTCP subflow remote address information, including the port.

Returns: 0 if operation was successful. errno otherwise.

◆ mptcpd_pm_set_backup()

int mptcpd_pm_set_backup	(	struct mptcpd_pm *	pm,
		mptcpd_token_t	token,
		struct sockaddr const *	local_addr,
		struct sockaddr const *	remote_addr,
		bool	backup
	)

Set priority of a subflow.

Parameters

[in]	pm	The mptcpd path manager object.
[in]	token	MPTCP connection token.
[in]	local_addr	MPTCP subflow local address information, including the port.
[in]	remote_addr	MPTCP subflow remote address information, including the port.
[in]	backup	Whether or not to set the MPTCP subflow backup priority flag.

Returns: 0 if operation was successful. errno otherwise.

Functions

Detailed Description

Function Documentation

◆ mptcpd_kpm_add_addr()

◆ mptcpd_kpm_dump_addrs()

◆ mptcpd_kpm_flush_addrs()

◆ mptcpd_kpm_get_addr()

◆ mptcpd_kpm_get_limits()

◆ mptcpd_kpm_remove_addr()

◆ mptcpd_kpm_set_flags()

◆ mptcpd_kpm_set_limits()

◆ mptcpd_pm_add_addr()

◆ mptcpd_pm_add_addr_no_listener()

◆ mptcpd_pm_add_subflow()

◆ mptcpd_pm_get_idm()

◆ mptcpd_pm_get_lm()

◆ mptcpd_pm_get_nm()

◆ mptcpd_pm_ready()

◆ mptcpd_pm_register_ops()

◆ mptcpd_pm_remove_addr()

◆ mptcpd_pm_remove_subflow()

◆ mptcpd_pm_set_backup()
