commands.h File Reference

mptcpd generic netlink command utilities. More...

#include <stdbool.h>
#include <stddef.h>
#include <assert.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <linux/netlink.h>

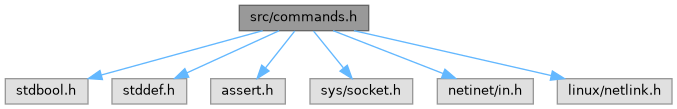

Include dependency graph for commands.h:

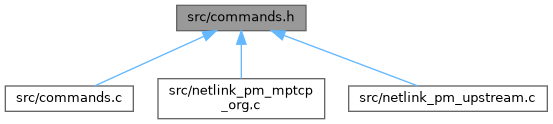

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MPTCPD_NLA_ALIGN(v)   (NLA_HDRLEN + NLA_ALIGN(sizeof(v)))
	Return netlink aligned size of a variable or type.
#define	MPTCPD_NLA_ALIGN_OPT(v)   ((v) == 0 ? 0 : (MPTCPD_NLA_ALIGN(v)))
	Return netlink aligned size of an optional variable.
#define	MPTCPD_NLA_ALIGN_ADDR(v)    (NLA_HDRLEN + NLA_ALIGN(mptcpd_get_addr_size(v)))
	Return netlink aligned size of an IP address.

Functions
uint16_t	mptcpd_get_port_number (struct sockaddr const *addr)
	Get TCP port number (host byte order).
struct mptcpd_pm_cmd_ops const *	mptcpd_get_upstream_cmd_ops (void)
	Get upstream kernel MPTCP generic netlink command operations.
struct mptcpd_pm_cmd_ops const *	mptcpd_get_mptcp_org_cmd_ops (void)
	Get multipath-tcp.org kernel MPTCP generic netlink command operations.
bool	mptcpd_check_genl_error (struct l_genl_msg *msg, char const *fname)
	Check for genl operation failure.
void	mptcpd_family_send_callback (struct l_genl_msg *msg, void *user_data)
	Generic error reporting callback.

Detailed Description

mptcpd generic netlink command utilities.

Copyright (c) 2017-2022, Intel Corporation

Macro Definition Documentation

MPTCPD_NLA_ALIGN

#define MPTCPD_NLA_ALIGN

(

v

)

(NLA_HDRLEN + NLA_ALIGN(sizeof(v)))

Return netlink aligned size of a variable or type.

Parameters

[in]

v

Variable or type to be aligned.

MPTCPD_NLA_ALIGN_ADDR

#define MPTCPD_NLA_ALIGN_ADDR

(

v

)

(NLA_HDRLEN + NLA_ALIGN(mptcpd_get_addr_size(v)))

Return netlink aligned size of an IP address.

Parameters

[in]

v

Pointer to struct sockaddr containing an IP address (i.e., struct in_addr or struct in6_addr ) to be aligned.

Returns

The netlink aligned size of the IP address contained in the sockaddr pointed to by v.

MPTCPD_NLA_ALIGN_OPT

#define MPTCPD_NLA_ALIGN_OPT

(

v

)

((v) == 0 ? 0 : (MPTCPD_NLA_ALIGN(v)))

Return netlink aligned size of an optional variable.

Parameters

[in]

v

Variable to be aligned.

Returns

The netlink aligned size of the variable v or 0 if v is zero or implicitly convertible to zero (e.g. NULL).

Function Documentation

mptcpd_check_genl_error()

bool mptcpd_check_genl_error	(	struct l_genl_msg *	msg,
		char const *	fname
	)

Check for genl operation failure.

Check for generic netlink operation failure, and log associated error message.

Parameters

[in]	msg	Generic netlink message information.
[in]	fname	Name function from which the error check was initiated.

Returns

true if no error was found, and false otherwise.

mptcpd_family_send_callback()

void mptcpd_family_send_callback	(	struct l_genl_msg *	msg,
		void *	user_data
	)

Generic error reporting callback.

Parameters

[in]	msg	Generic netlink message information.
[in]	user_data	Function name.

mptcpd_get_port_number()

uint16_t mptcpd_get_port_number

(

struct sockaddr const *

addr

)

Get TCP port number (host byte order).

Parameters

[in]

addr

Network address information.

Get TCP port suitably typed for use in MPTCP generic netlink API calls, or zero if no address was provided.

Returns

TCP port number in host byte order, or zero if no IP address was provided.
